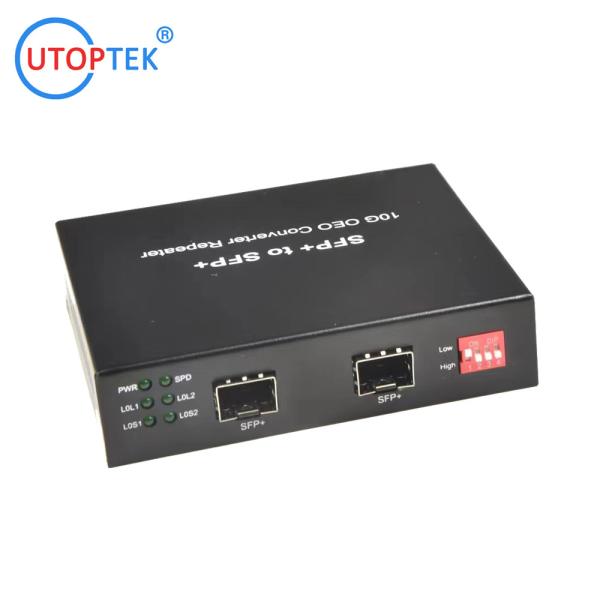

10G OEO Converter SFP+ to SFP+ Converter
Product Description:
This 10G Converter is connection between fiber to fiber 10Gbps equipment function as fiber media converter ,or as fiber repeater for long distance transmission.OEO for network backbone(SAN, LAN, MAN). Support SDH/SONET STM-64/OC-192,10G fiber channel,10G Ethernet etc. Can be applied in Telecommunication room, R&D laboratory, Data center, and etc. 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.
Features:
- Support ITUT prescribed DWDM/CWDM wavelength
- can display it's DDM function.
- Full State Led display
- Easy installation
- Support Jumbo Frame
- Support hot plugging
- Transparent Transport and very low delay
- 3R function(Regenration , Reshaping , Retiming)
Technical Parameters:
| Interface | 2*10G SFP+ slot |
| Protocols | 8.5G Fiber Channel |
| SONET OC-192, SDH STM-64 (9.95Gbps) |
| 10G WAN (10Gbps) |
| 10G LAN (10.31Gbps) |
| OTN OTU-2 (G.709) (10.70Gbps) |
| 10G LAN with 255/237 FEC coding (11.09Gbps) |
| 10G Fiber Channel (11.32Gbps) |
| 10G POS |
| Transmission Speed | 8.5Gb/s-11.7Gb/s |
| Interface Type | Type A : XFP to XFP |
| Type B : XFP to SFP+ |
| Type C : SFP+ to XFP |
| Type D: SFP+ to SFP+ |
| Transmission Distance | XFP module: Up to 80Km |
| SFP+ module: up to 80km |
| Maximum Packet Forwarding Rate | 14,880,950/S |
| LED instructions | PWR,SPD, LOS1, LOL2,LOS2, LOL2 |
| Power requirement | Standalone: DC12V~48V |
| Power consumption: ≤4W |
| Dimension | Standalone : 110(L)*95(W)*26(H)mm |
| Work Environment | Operating Temp: -20~ 60℃ |
| Storage Temp: -40~ 85℃ |
| Humidity: 5%~90% (non-condensing) |
Packing and Shipping:
Fiber Media Converters are packaged in foam-lined boxes for protection during shipping. The box is then placed inside a larger shipping box with adequate packing materials to prevent damage during shipping and handling. All shipping boxes are labeled with the product name, serial number, and the customer's name and address.
The product is shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking numbers are provided to customers once the product has been shipped.
Product photoes:
Customers' Feedbacks:
Ordering Models:
| UT-MC2101-SX | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN MM 2km SC DC5V power supply, TRx:1310nm or 850nm |
| UT-MC2101-S20 | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| UT-MC2101-S20A | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm |
| UT-MC2101-S20B | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| UT-MC2101-SFP | 10/100M media converter, 1*RJ45+1*SFP port, External DC5V power supply |
| UT-MC3101-SX | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN MM 2km SC DC5V power supply, TRx:1310nm or 850nm |
| UT-MC3101-S20 | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| UT-MC3101-S20A | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm |
| UT-MC3101-S20B | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| UT-MC3101-SFP | 10/100/1000M media converter, 1*RJ45+1*SFP port, External DC5V power supply |
| UT-MC1G-2SFP | 10/100/1000M SM to MM media converter, 2*SFP port, External DC5V power supply |
| UT-MC1G-2SC | 10/100/1000M SM to MM media converter, SM duplex SC 1310nmkm to MM duplex SC 850nm 550m, External DC5V power supply |
| UT-RACK-14-2U | 19'' 2U 14slot Rack mount Chassis , for Standalone media converters,with dual power supply |
| UT-MC10G-SFP | 10G media converter, 1*RJ45+1*SFP port, External DC12V power supply |
| UT-MC10G-2SFP | 10G OEO converter, 2*SFP+ port, External DC12V power supply |
FAQ:
Q1: What is Fiber Media Converter?
A1: Fiber Media Converter is a device designed to convert optical signals from one fiber type to another type, which is provided by UTOPTEK. The model number is UT-MC3101-SC20. It has CE certification, and comes with 2 minimum order quantity. It can be packaged in 60pcs/Carton and delivery time is 2-3days. Payment terms include T/T, WU, Paypal, Alipay, and RMB pay. The supply ability is 5000pcs per week.
Q2: What is the brand name of Fiber Media Converter?
A2: The brand name of Fiber Media Converter is UTOPTEK.
Q3: Where is Fiber Media Converter from?
A3: Fiber Media Converter is from China.
Q4: What is the minimum order quantity?
A4: The minimum order quantity is 2.
Q5: What is the payment terms?
A5: The payment terms include T/T, WU, Paypal, Alipay, and RMB pay.
